Zhejiang, a food company (Material: lotus root starch drying) selection: XF-50B the fluidized bed dryer
Application client：Zhejiang, a food company (Material: lotus root starch drying)Product selection：XF-50B Boiling bed drier
Detailed description
Introduction:

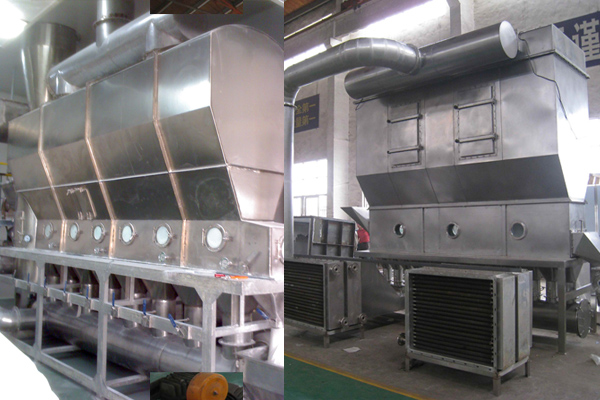

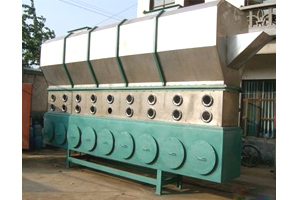

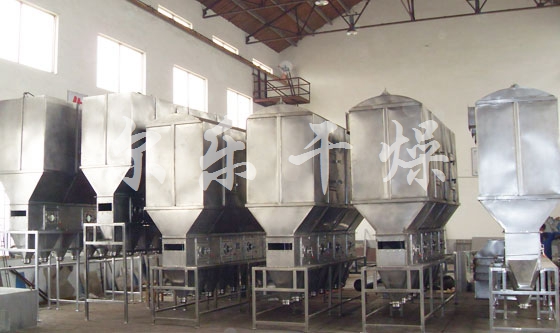

Boiling dry, also known as fluidized bed, which consists of air filter, heater, boiling bed, cyclone separator, bag filter, high pressure centrifugal fan, operation table, due to the different nature of the dried materials, ancillary equipment when dust , may need to be considered, which can select cyclone separator, bag filter, can also choose one of the generally large proportion of particulate material such as dried granules and simply select the cyclone, the proportion of the lighter small particles and powder-like material to be supporting bag filter, and equipped with pneumatic feeding device and belt conveyor for selection.
Overview:
Loose granular solid material from the fluidized bed dryer feeder, clean filtered air heated by the blower into the bottom of the fluidized bed through distribution plate in contact with the solid material to form a gas-solid fluidized state heat and mass transfer. After drying the material is discharged from the discharge port, the exhaust gas discharged from the top of the fluidized bed by the cyclone and bag filter group recovered solid powder emptying.
Steam, electricity, hot air furnace can be used (as request).
It is suitable for drying bulk granular materials, such as: pharmaceutical drugs in the drug, tablet Pellets, Chinese traditional medicine, chemical raw materials in plastic resin, citric acid and other powdery, granular material dehumidification drying, but also for granules dried food and beverage, food processing, corn germ, feed and so on. The particle size of the material up to 6mm, most preferably 0.5 ~ 3mm.
Features:
Boiling bed drier can automate production, continuous drying equipment. Drying speed, low temperature, to ensure product quality, in line with the requirements of GMP pharmaceutical production, steam, electricity, hot air furnace can use.
Technical Parameters:
| Model Specifications | XF0.4-8 | XF0.4-10 | XF0.4-12 | XF0.5-4 (formerly XF60) | XF0.5-6 | XF0.5-8 | XF0.5-10 | XF0.5-12 | XF0.5-14 | XF0.5-16 | XF0.5-18 |
| Bed area (m 2) | 3.2 | 4.0 | 4.8 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 |
| Drying capacity (kg H 2 O / H) | 112 to 160 | 140-200 | 168 to 240 | 70 to 100 | 105 to 150 | 140-200 | 175 to 250 | 210 to 300 | 245 to 350 | 280-400 | 315 to 450 |
| Fan power (kw) | 48 | 70 | 70 | 30 | 48 | 70 | 105 | 140 | 147 | 169 | 197 |
| Inlet air temperature (℃) | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 |
| Material Temperature (℃) | 40 to 60 | 40 to 60 | 40 to 60 | 40 to 60 | 40 to 60 | 40 to 60 | 40 to 60 | 40 to 60 | 40 to 60 | 40 to 60 | 40 to 60 |
| Dimensions (host) length × width × height | 8 × 1 × 3.58 | 8 × 1 × 3.58 | 12 × 1 × 3.58 | 4 × 1.2 × 4.1 | 6 × 1.2 × 4.1 | 8 × 1.2 × 4.1 | 10 × 1.2 × 4.1 | 12 × 1.2 × 4.1 | 14 × 1.2 × 4.1 | 16 × 1.2 × 4.1 | 18 × 1.2 × 4.1 |
| Area (m 2 ) | 74 | 82 | 96 | 50 | 70 | 82 | 100 | 140 | 180 | 225 | 268 |
