WLDH Series Horizontal Ribbon Mixer

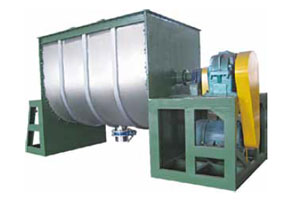

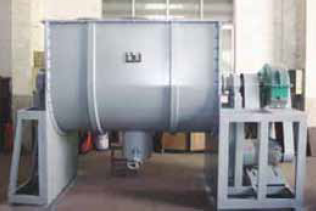

This machine is composed of container, screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers.
Detailed description
Features：
Big coefficient of loading, small occupied area.
Application：
The ribbon mixer is generally used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.
Technical parameters：
|
型号规格(m3) |
WLDH-0.1 | WLDH-0.3 | WLDH-0.5 | WLDH- 1.0 | WLDH-1.5 | WLDH-2.0 | WLDH-3.0 | WLDH-4.0 | WLDH-6.0 | WLDH-8.0 | WLDH-10 |
| 一次混合(kg) | 30-50 | 100-150 | 200-300 | 400-600 | 600-900 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| 装机功率(kw) | 1.5-4 | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| 设备重量(kg) | 420 | 850 | 1060 | 1790 | 1900 | 2750 | 3500 | 4280 | 5300 | 6800 | 7800 |
上述产品按客户要求由A3钢或不锈钢制造。
