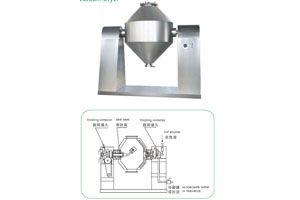

SZG Series Conical Vacuum Dryer
SZG Series Conical Vacuum Dryer is a new generation drying device developed by our factory on the basis of combining the technology of similar equipment. It has two connecting ways, i.e. belt or chain.
Detailed description
Features：
When oil is used to heat, use automatic constant temperature control. It can be used for drying biology products and mine. Its temperature of operation can be adjusted form 20-160 ℃ .
● Compared to ordinal dryer, its heat efficiency will be 2 times higher.
● The heat is indirect. So the raw material can not be polluted. It is in conformity with the requirement of GMP. It is easy in washing and maintenance.
Principle：
● Heat source (for example, low pressure steam or thermal conduct oil) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell;
● Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized;
● The raw material exists is under vacuum. The drop of steam pressure makes the moisture (solvent) at the surface of raw material become saturation and will evaporate. The solvent will be discharged through vacuum pump an recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can be realized within a short time.
Application：
It is suitable for the raw materials that need to concentrate, mixed and dried at low temperature (for example, biochemistry) products in chemical, pharmaceutical and foodstuff industries. Particularly it is suitable for the raw materials that are easy to be oxidized, volatilized and have heat sensitivity and is toxic and not permitted to destroy its crystal in drying process.
|
项目 |
单位 |
机 型 |
||||||||||
|
名称 |
Unit |
100 |
200 |
350 |
500 |
750 |
1000 |
1500 |
2000 |
3000 |
4000 |
5000 |
|
总容积 |
L |
100 |
200 |
350 |
500 |
750 |
1000 |
1500 |
2000 |
3000 |
4000 |
5000 |
|
工作容积 |
L |
50 |
100 |
175 |
250 |
375 |
500 |
750 |
1000 |
1500 |
2000 |
2500 |
|
加热面积 |
m2 |
1.16 |
1.5 |
2 |
2.63 |
3.5 |
4.61 |
5.58 |
7.5 |
10.2 |
12.1 |
14.1 |
|
转速 |
Rpm |
6 |
5 |
4 |
4 |
4 |
||||||
|
功率 |
Kw |
0.75 |
1.1 |
1.5 |
1.5 |
2 |
3 |
3 |
4 |
5.5 |
7.5 |
7.5 |
|
回转高度 |
mm |
1810 |
1910 |
2090 |
2195 |
2500 |
2665 |
2915 |
3055 |
3530 |
3800 |
4180 |
|
整机重量 |
kg |
825 |
1050 |
1350 |
1650 |
1800 |
2070 |
2250 |
3000 |
4500 |
5350 |
6000 |
|
罐内设计压力 |
Mpa |
-0.09~0.096 |
||||||||||
|
夹层设计压力 |
Mpa |
0.3 |
||||||||||
|
电机可根据用户要求选配调速电机，转速为0-6rpm 本机最大容积可设计为10000L |
||||||||||||
